Vertical Lifeline Kit

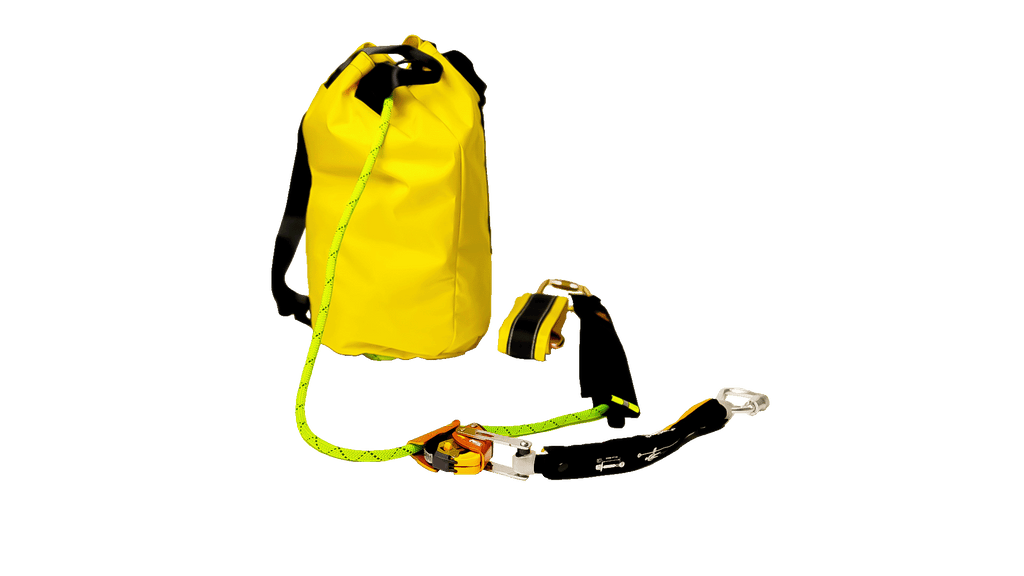

The Tech Safety Lines Vertical Lifeline Kit is a pre-assembled mobile fall-arrest system designed to provide continuous fall protection during vertical climbing and work at height. Built around an 11.5 mm static rope with a Petzl® ASAP® LOCK mobile fall arrester and ASAP’SORBER energy absorber, the system allows technicians to move vertically while the fall arrester follows automatically along the lifeline.
Why It's Used
Technicians climbing or working on vertical structures need fall protection that moves with them without requiring constant manual repositioning.
The Vertical Lifeline Kit provides a portable rope-based fall-arrest system that can be installed at an appropriate anchorage and deployed where a permanent vertical fall-protection system may not be available. The mobile fall arrester travels along the rope during normal movement and locks onto the lifeline in the event of a fall.
The kit arrives pre-assembled to simplify deployment, reduce field assembly, and help ensure that critical components remain organized as a complete system.
Key Features
- Pre-assembled vertical fall-arrest system
- Petzl® ASAP® LOCK mobile fall arrester
- ASAP’SORBER energy absorber
- 11.5 mm yellow static rope
- Mobile fall arrester follows the technician during vertical movement
- Hands-free movement during normal ascent and descent
- Integrated rope weight helps promote consistent rope travel
- Heavy-duty anchor strap
- Canvas edge protection helps protect rope at contact points
- Breakaway rope glider
- Includes compatible system connectors
- Includes two BEAL Jammy self-locking slings
- Heavy-duty storage bag protects and organizes the system
- Available in multiple rope lengths
- Designed for portable deployment across a wide range of work-at-height environments
Compatibility
The Vertical Lifeline Kit is built around the Petzl® ASAP® LOCK mobile fall arrester and compatible Petzl® ASAP’SORBER energy absorber.
Petzl® ASAP® LOCK:
https://store.techsafetylines.com/products/petzl%C2%AE-asap%C2%AE-lock
Petzl® ASAP’SORBER:
https://store.techsafetylines.com/products/petzl%C2%AE-asap-sorber
The VLK can also be incorporated into broader TSL assisted- and self-rescue programs using equipment such as the SRK-15® Micro Rescue Kit, StepWise® Fall Arrest Lanyard, and 4:1 mechanical-advantage systems.
SRK-15® Micro Rescue Kit:
https://store.techsafetylines.com/products/ce-ansi-certified-srk-15-micro-rescue-kit
4:1 Pulley System:
https://store.techsafetylines.com/products/4-1-pulley-system
Fall-arrest and rescue components must be configured and used according to the applicable rescue plan, anchorage requirements, manufacturer instructions, and technician training.
Ideal For
- Construction and elevated structures
- Telecommunications and tower work
- Utilities and infrastructure
- Oil and gas operations
- Industrial maintenance
- Manufacturing facilities
- Wind energy
- Bridges and structural access
- Water towers
- Scaffolding
- Vertical climbing applications
- Temporary vertical fall-protection systems
- Worksites where permanent vertical fall protection is unavailable
Training
Proper training is strongly recommended prior to use. TSL offers hands-on Vertical Lifeline Kit - Assisted and Self-Rescue Training to help teams build the skills and confidence to use this equipment safely.
COMPONENTS / SPECIFICATIONS
-
Brand: Tech Safety Lines
-
Product: Vertical Lifeline Kit
-
Product Type: Pre-assembled mobile vertical fall-arrest system
-
Lifeline: 11.5 mm yellow static rope
-
Available Lengths: 50 ft., 100 ft., 150 ft., 200 ft., 300 ft., 400 ft.
-

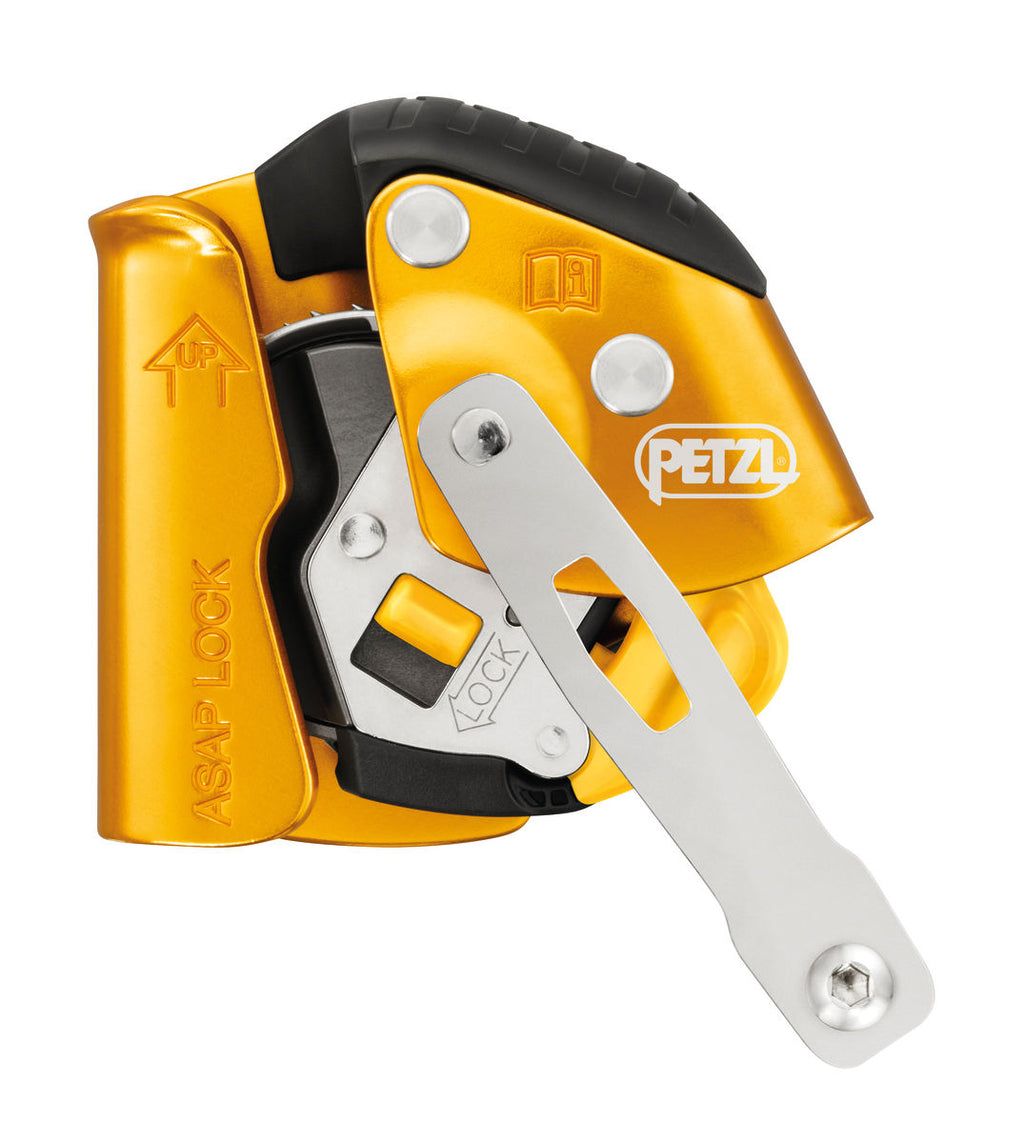

Mobile Fall Arrester: Petzl® ASAP® LOCK
-

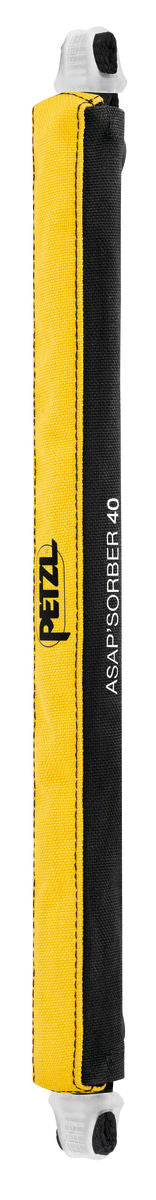

Energy Absorber: Petzl® ASAP’SORBER
-
Anchorage Component: Heavy-duty anchor strap
-
Connectors: 1 steel carabiner; 1 ANSI/CE/CSA carabiner
-
Edge Protection: Canvas edge protector
-
Slings: 2 BEAL Jammy self-locking slings
-
Rope Management: 1 breakaway rope glider
-
Storage: Heavy-duty rope bag
-
Assembly: Pre-assembled
-
Custom Rope Lengths: Available upon request
CERTIFICATIONS
-
Current TSL listing identifies the system as certified to ANSI/ASSE Z359.15-2014
- Individual components meet applicable ANSI, CE, and CSA requirements
TSL verification recommended: Confirm the current system-level ANSI designation and edition before publishing the revised certification language.
