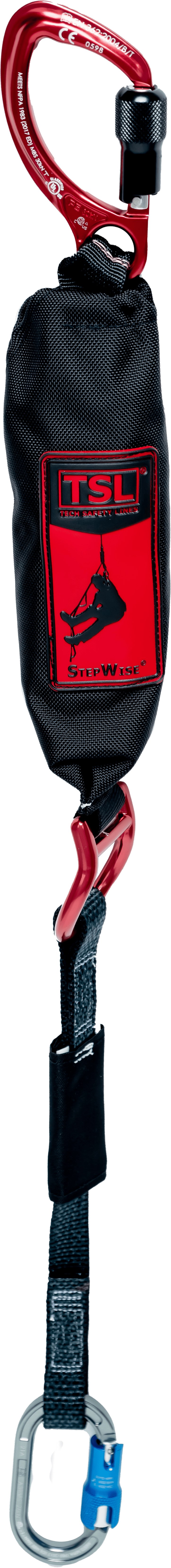

3 ft. StepWise® Rope Access Lanyard (CM0158A)
The Tech Safety Lines 3 ft. StepWise® Rope Access Lanyard is a compact fall-arrest lanyard designed for rope access and work-at-height applications where post-fall support and self-rescue capability are critical. Its patented built-in webbed ladder provides a suspended worker with an immediate foothold after a fall, while an integrated rescue connection allows the lanyard to interface with the SRK-15® Micro Rescue Kit.
Why It's Used
Fall arrest stops the fall, but it does not automatically resolve the worker's suspension afterward. The StepWise® addresses that next stage by incorporating a webbed ladder directly into the lanyard, giving the suspended worker a foothold to stand on and helping relieve full-body harness pressure while awaiting rescue.
For trained workers equipped with the SRK-15®, the integrated rescue connection also provides a pathway from fall arrest to controlled self-rescue when the site-specific rescue plan permits.
Key Features
- Patented StepWise® fall-arrest design
- Compact 3 ft. rope access configuration
- Built-in webbed ladder
- Provides an immediate foothold following a fall
- Helps relieve harness pressure during post-fall suspension
- Creates a place of refuge while awaiting rescue
- Integrated connection point for self-rescue
- Designed for use with the SRK-15® Micro Rescue Kit
- Rated for 6 ft. free fall
- 130–310 lb. user capacity
- Polyester construction
- Steel connectors
- Lanyard length and connective hardware can be customized to organizational requirements
Compatibility
The 3 ft. StepWise® Rope Access Lanyard includes an integrated rescue connection designed for use with the SRK-15® Micro Rescue Kit.
When used together by a properly trained worker, the StepWise® provides post-fall support and a rescue connection while the SRK-15® provides controlled-descent capability for self-rescue.
SRK-15® Micro Rescue Kit:
https://store.techsafetylines.com/products/ce-ansi-certified-srk-15-micro-rescue-kit
The 3 ft. StepWise® is also incorporated into TSL training alongside the Vertical Lifeline Kit, providing an integrated approach to fall protection, assisted rescue, and self-rescue.
Vertical Lifeline Kit:
https://store.techsafetylines.com/products/vertical-lifeline-kit
Ideal For
- Rope access operations
- Construction and elevated structures
- Telecommunications and tower work
- Utilities and infrastructure
- Industrial maintenance
- Oil and gas operations
- Manufacturing facilities
- Wind energy
- Vertical lifeline applications
- Work-at-height technicians
- Fall-arrest applications where post-fall suspension is a concern
- Organizations incorporating self-rescue into their fall-protection program
Training

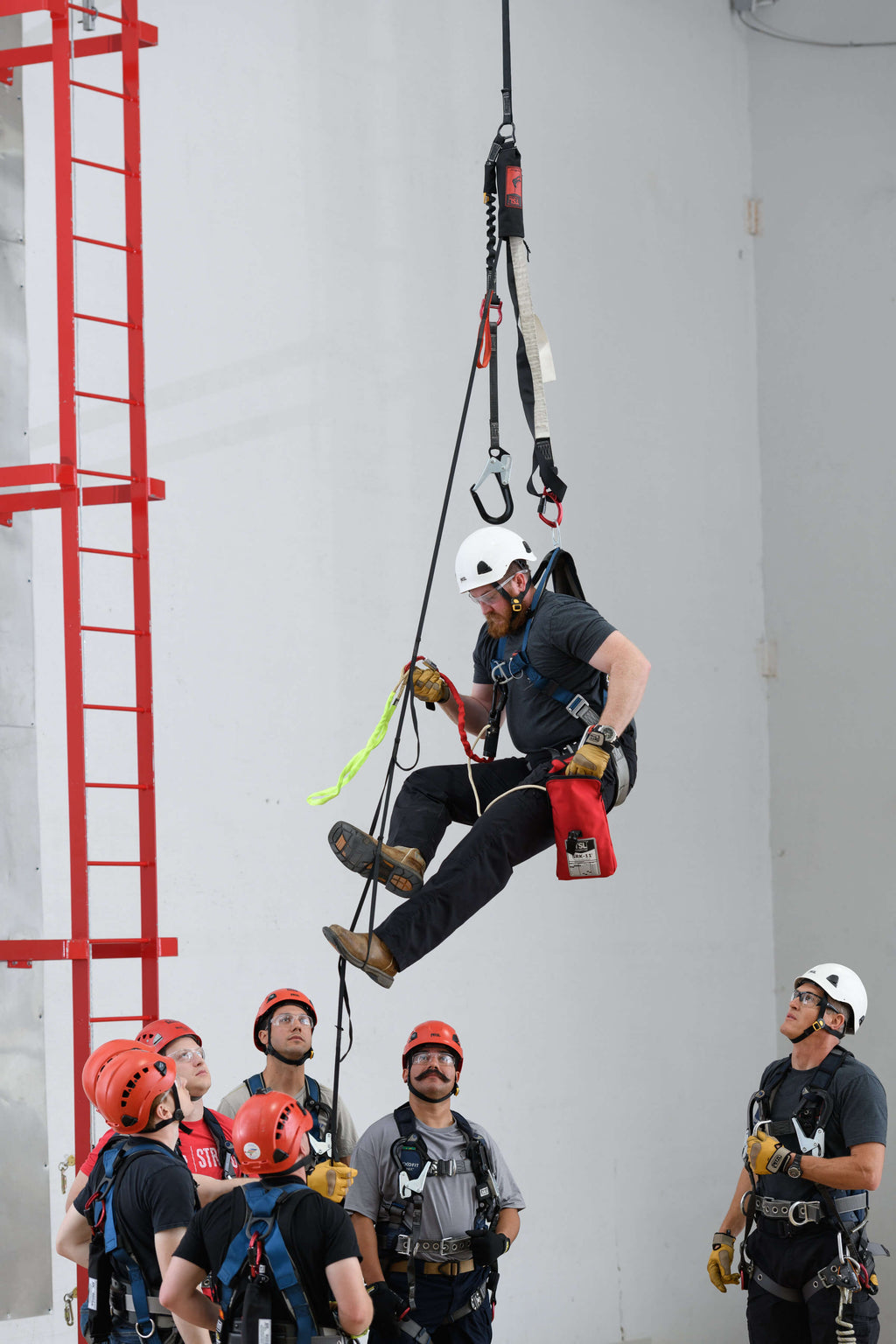

Proper training is strongly recommended prior to use. TSL offers hands-on Vertical Lifeline Kit - Assisted and Self-Rescue Training to help teams build the skills and confidence to use this equipment safely.
SPECIFICATIONS
-
Brand: Tech Safety Lines
-
Product: StepWise® Rope Access Lanyard
-
Model: CM0158A
-
Product Type: Rope access fall-arrest lanyard with integrated post-fall ladder
-
Lanyard Length: 3 ft.
-
Free Fall Length: 6 ft.
-
Weight: 1.8 lbs. — verify current production specification
-
User Capacity: 130–310 lbs.
-
Construction Material: Polyester
-
Connector Material: Steel
-
Post-Fall Support: Integrated webbed ladder
-
Rescue Connection: Integrated connection point
-
Primary Rescue Compatibility: SRK-15® Micro Rescue Kit
-
Customization: Lanyard length and connective hardware available to company specifications
STANDARDS
- Meets or exceeds applicable OSHA and ANSI requirements
TSL verification recommended: Add the specific OSHA/ANSI standard designations applicable to CM0158A once confirmed.
